Water-cooled Generating Set

10-120GFT

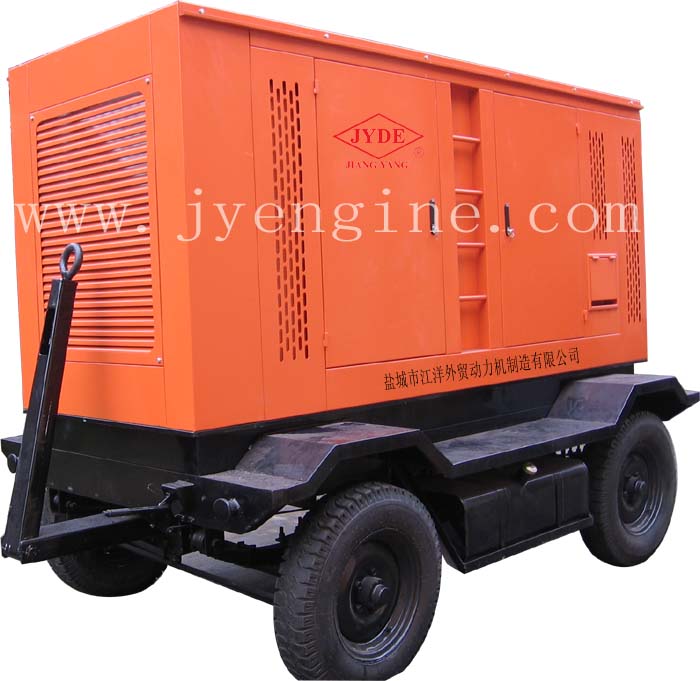

10-120GFT Movable & Trailer Station

Model of Gen-set
Unit
10GF
12GF
15GF
20GF
24GF
 30GF 40GF
Rated power
KW
10
12
15
20
24
 30 40

E
n
g
i
n
e
Model
-
ZH1105(ND)
295D
ZH1110(ND)
295D
2100D
395D
495D
495D
4100D
 495ZD
4105D		 4100ZD-1
12Hours Ratedoutput
KW/PS
13.2/18
14.7/20
19.7/27
26.5/36
26.5/36
35.2/48
48/66
Fuel Consumption
g/kw.h
246.2
248.2
252.6
258.4
251.6
Cooling Method
-
Evaporation Or Radiator
Water cooled
Starting Method
-
Electric starting

G
e
n
e
r
a
t
o
r
Model
-
ST-10
TFW-10
ST-12
TFW-12
ST-15
TFW-15
ST-20
TFW-20
STC-24
TFW-24
 STC-30
TFW-30		 TFW-40
TZH-40
Rated Output
KW
10
12
15
20
24
30
40
Rated Voltage
V
230V/115V or 400V/230V
Rated Current
A
43.5
18.1
52.1
21.7
27.1
36
43.3
54
72
Frequency
HZ
50/60HZ
Power Factor
 -
1
0.8
1
0.8
1
0.8
1
0.8

0.8lagging

0.8lagging

0.8lagging
Phase Connection
-
1-Phase or 3-Phase 4-wire
Exciation
-
Harmonic Excitation or phase compound or brushless

Con-
trol
Pan-
el
Model
-
 - BF-S-12 BF-S-15 BF-S-20 BF-S-24 BF-S-30 BF-S-40
Voltage Regulation
 -
Manual/Automatic
Net Weight
kg
360
380
620
680
680
 780 1300
Gross Weight
kg
400
420
680
760
760
 830 1450
Packing Size LxWxH
cm
140x71x76
 180x73x120
185x73x125
 210x75x130 230x75x150

Model of Gen-set
Unit
50GF
64GF
75GF
90GF
100GF
 120GF
Rated power
KW
50
64
75
90
100
 120

E
n
g
i
n
e
Model
-
4135D-1
4135AD
6135D
6135AD
6135AD
 6135ZD
12Hours Ratedoutput
KW/PS
55.8/80
73.5/100
88.3/120
110.3/150
110.3/150
138.7/190
Fuel Consumption
g/kw.h
231.1
228.4
232.8
Cooling Method
-
Water cooled
Starting Method
-
electric starting

G
e
n
e
r
a
t
o
r
Model
-
TFW-50
TZH-50
TFW-64
MP-64
TFW-75
MP-75-4P
TFW-90
MP-90-4P
TFW-100
MP-100-4P
 TFW-120
MP-120-4P
Rated Output
KW
50
64
75
90
100
120
Rated Voltage
V
230V/115V or 400V/230V
Rated Current
A
90.2
115
135
162
180
216
Frequency
HZ
50/60HZ
Power Factor
-
0.8lagging
Phase Connection
-
1-Phase or 3-Phase 4-wire
Exciation
-
Harmonic Excitation or phase compound or brushless

Con-
trol
Pan-
el
Model
-
BF-S-50
 BF-S-64 BF-S-75 BF-S-90 BF-S-100 BF-S-120
Voltage Regulation
-
Manual/Automatic
Net Weight
kg
1450
1650
1750
1940
2000
 2540
Gross Weight
kg
1600
1800
1900
2040
2100
 2700
Packing Size LxWxH
cm
250x100x150
 260x100x150
290x100x165
 310x110x175
