Water-cooled Generating Set

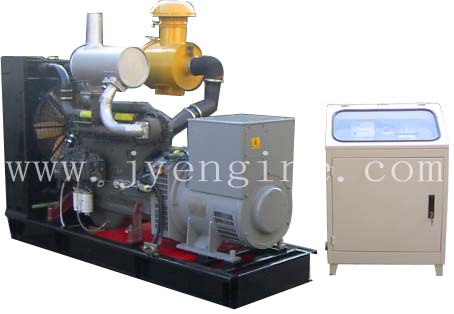

20-500GFZ Automatic Diesel Generating Set



Model of Gen-set
Unit
20GF
24GF
30GF
40GF
50GF
 64GF 75GF 90GF
Rated power
KW
20
24
30
40
50
 64 75 90

E
n
g
i
n
e
Model
-
495D
495D
4100D
495ZD
4105D
4100 ZD-1
4135D-1
 4135AD 6135D 6135AD
12Hours Ratedoutput
KW/PS
26.5/36
26.5/36
35.2/48
48/66
58.8/80
73.5/100
88.3/120
110.3/150
Fuel Consumption
g/kw.h
258.4
251.6

231.1
228.4
Cooling Method
-
Evaporation Or Radiator
Water cooled
Starting Method
-
Electric starting

G
e
n
e
r
a
t
o
r
Model
-
ST-20
TFW-20
STC-24
TFW-24
STC-30
TFW-30
TFW-40
TZH-40
TFW-50
TZH-50
 TFW-64
MP-64		 TFW-75
MP-75-4P		 TFW-90
MP-90-4P
Rated Output
KW
20
24
30
40
50
64
75
90
Rated Voltage
V
230V/115V or 400V/230V
Rated Current
A
36
43.3
54
72
90.2
115
135
162
Frequency
HZ
50/60HZ
Power Factor
-
0.8lagging
Phase Connection
-
1-Phase or 3-Phase 4-wire
Exciation
-
Harmonic Excitation or phase compound or brushless

Con-
trol
Pan-
el
Model
-
BF-S-20
 BF-S-24 BF-S-30 BF-S-40 BF-S-50 BF-S-64 BF-S-75 SF-S-90
Voltage Regulation
-
Manual/Automatic1550
Net Weight
kg
680
680
780
1300
1400
 1550 1820 1940
Gross Weight
kg
760
760
830
1450
1600
 1800 1900 2040
Packing Size LxWxH
cm
185x73x125
 210x75x130
230x75x150
 250x100x150 260x100x150 290x100x165

Model of Gen-set
Unit
100GF
120GF
150GF
200GF
250GF
300GF
400GF
500GF
Rated power
KW
100
120
150
200
250
300
400
500

E
n
g
i
n
e
Model
-
6135AD
6135ZD
12V135D
X6135ZL
12V135AD
12V135AD
W12V135AZ1D 12V150ZD4A
Z12V150AZD
Z8V190D
X12V190BD-26300ZD
12Hours Ratedoutput
KW/PS
110.3/150
138.7/190
176.5/240
220.7/300
277.4/380
308.7/420
488.8/665
551/750
Fuel Consumption
g/kw.h
228.4
232.8
239.7
240.6
220
214
Cooling Method
-
Water cooled
Starting Method
-
Electric starting

G
e
n
e
r
a
t
o
r
Model
-
TFW-100
MP-100-4P
TFW-120
MP-120-4P
TFW-150
MP-150-4P
TFW-200
MP-200-4P
TFW-250
MP-250-4P
TFW-300
MP-300-4P
IFC5404-4TA42
IFC5456-6TA42
Rated Output
KW
100
120
150
200
250
300
400
500
Rated Voltage
V
230V/115V or 400V/230V
Rated Current
A
180
216
270.6
360.9
451
541
722
902
Frequency
HZ
50/60HZ
Power Factor
-
0.8lagging
Phase Connection
-
1-Phase or 3-Phase 4-wire
Exciation
-
Harmonic Excitation or phase compound or brushless

Con-
trol
Pan-
el
Model
-
BF-S-100
BF-S-120
BF-S-150
FK-X-200
FK-X-250
FK-X-300
FK-X-400
FK-X-500
Voltage Regulation
-
Manual/Automatic
Net Weight
kg
2000
2540
3140
3450
3780
3850
5700
14100
Gross Weight
kg
2100
2700
3300
3650
3950
4100
6000
14500
Packing Size LxWxH
cm
290x100x165
310x110x175
350x150x220
380x180x220
420x180x220
610x204x295
