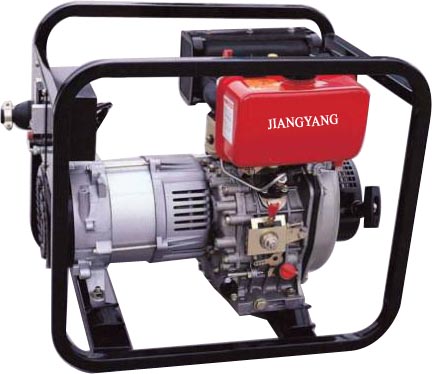

Air-cooled Generating Set
|
|
MAIN SPECIFICATION
MODEL |
ECONOMICAL
TYPE |
||||||
DG2500L |
DG3500L |
DG6500L |
|||||
G
E N E R A T O R |
TYPE |
Revolving field type 2 pole generator | |||||
Frequency(HZ) |
50 |
60 |
50 |
60 |
50 |
60 |
|
Cont.
Output(KW) |
1.7 |
2 |
2.8 |
3.3 |
4.2 |
5 |
|
Voltage(A.C)(V) |
230 |
240(120) |
230 |
240(120) |
230 |
240(120) |
|
Current(A.C)(V)A |
7.3 |
8.3(16.7) |
12.2 |
13.8(27.5) |
18.3 |
20.8(41.7) |
|
Engine
Speed(r/min) |
3000 |
3600 |
3000 |
3600 |
3000 |
3600 |
|
Phase |
Single phase | ||||||
Power
factor(COS♂) |
1 |
||||||
Excitation
system |
Controlled Constant Self-excitation | ||||||
D.C
output V/A |
12V/8.3A | ||||||
Operation
Capacity |
12 hour Constant Operation | ||||||
Coupling
Pattern |
Straight shaft coupling | ||||||
E |
Model |
170FG |
178FG |
186FG |
|||
Type |
Direct injection Vertical,4-cycle,air-cooled diesel engine | ||||||
Displacement
cc(cu.in.) |
211(12.88) |
296(18.06) |
406(24.78) |
||||
Max.output(KW/rpm) |
2.8 |
3.1 |
4.4 |
4.6 |
6.6 |
7.35 |
|
Cont.output(KW/rpm) |
2.5 |
2.8 |
4 |
4.4 |
5.9 |
6.6 |
|
Starting
system |
Recoil | ||||||
Governor
system |
Centrfugal weight system | ||||||
Fuel |
Diesel light fuel(BS-AL or equivalent) | ||||||
Fuel
tank capacity(L) |
2.5 |
3.5 |
5.5 |
||||
Lube
oil capacity(L) |
0.8 |
1.1 |
1.65 |
||||
Bore
x Stroke(mm) |
70*55 |
78*62 |
86*70 |
||||
Protection
System |
Low
oil,Warning System/Stop Device(not for L-series) |
||||||
|
UNIT |
Noise
level at 7m dB(A) |
79 |
82 |
85 |
|||
Dimensions(LxWxH)mm |
575*400*500 |
640*480*530 |
720*480*580 |
||||
Dry
weight(kg) |
46 |
61 |
95 |
||||
