AIR-COOLED GENERATING SET

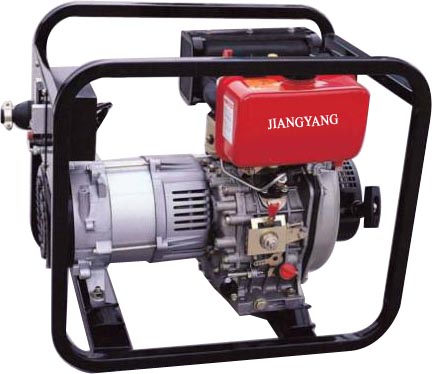

L-Series |

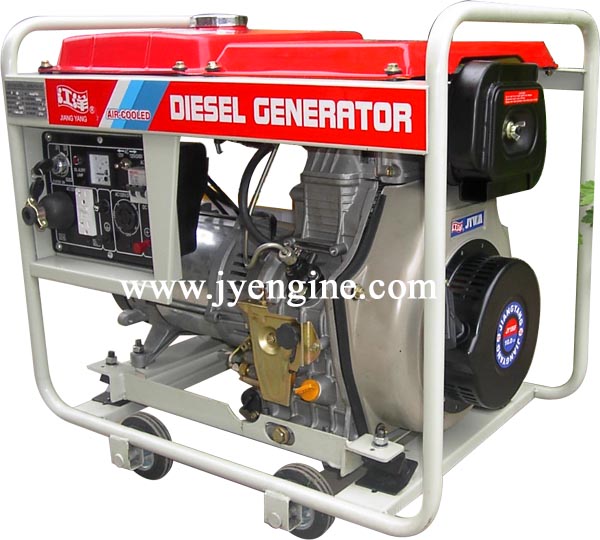

CL-Series |
|
-series.jpg)

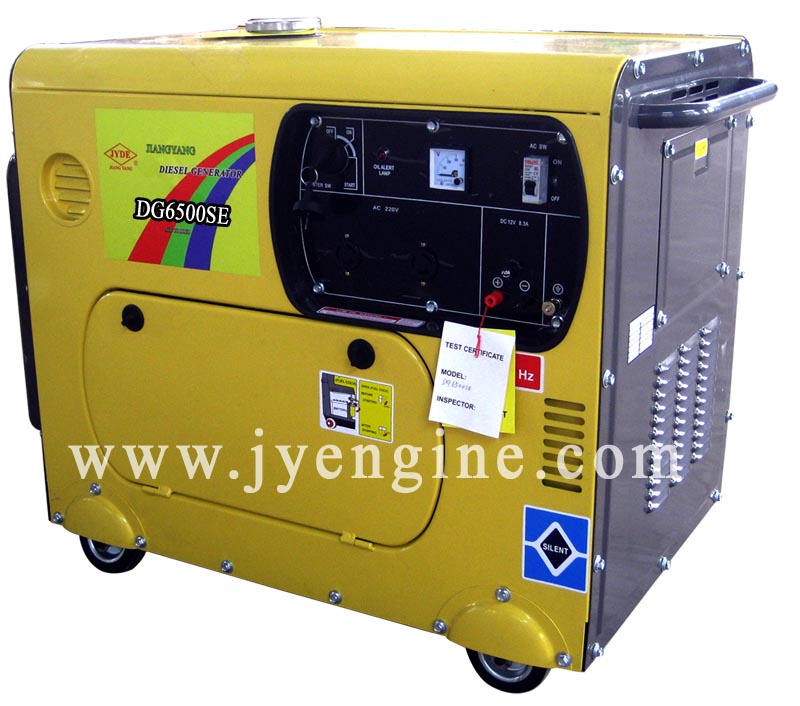

| Model | Economical type | Luxury type | Silent type | ||||||||||||||
| DG2500L | DG3500L | DG6500L | DG2500CL | DG3500CL | DG6500CL | DG3500SE | DG6500SE | ||||||||||
| G E N E R A T O R |
Type |
Revolving field type 2 pole generator | |||||||||||||||
Frequency(Hz) |
50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | |
Cont.output(kw) |
1.7 | 2 | 2.8 | 3.3 | 4.2 | 5 | 1.7 | 2 | 2.8 | 3.3 | 4.2 | 5 | 2.8 | 3.3 | 4.2 | 5 | |
Voltage(A.C.)(V) |
230 | 240 (120) |
230 | 240 (120) |
230 | 240 (120) |
230 | 240 (120) |
230 | 240(120) | 230 | 240 (120) |
230 | 240(120) | 230 | 240 (120) |
|
Current(A.C.)(A) |
7.4 | 8.3 (16.7) |
12.2 | 13.8 (27.5) |
18.3 | 20.8 (41.7) |
7.4 | 8.3 (16.7) |
12.2 | 13.8 (27.5) |
18.3 | 20.8 (41.7) |
12.2 | 13.8 (27.5) |
18.3 | 20.8 (41.7) |
|
Engine Speed(r/min) |
3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | |
Phase |
Single phase | ||||||||||||||||
Power factor |
1 | ||||||||||||||||
Excitation system |
Controlled Constant Self-excitation | ||||||||||||||||
D.C.output V/A |
12V/8.3A | ||||||||||||||||
Operation Capacity |
12 hour Constant Operation | ||||||||||||||||
Coupling pattern |
Straight shaft coupling | ||||||||||||||||
| E N G I N E |
Model |
170FG | 178FG | 186FG | 170FG(E) | 178FG(E) | 186FG(E) | 178FGE | 186FGE | ||||||||
Type |
Direct Injection Vertical, 4-Cycle, air-cooled diesel engine | ||||||||||||||||
Displacement cc(cu.in) |
211(12.88) | 296(18.06) | 406(24.78) | 211(12.88) | 296(18.06) | 406(24.78) | 296(18.06) | 406(24.78) | |||||||||
Max. output(kw/rpm) |
2.8 | 3.1 | 4.6 | 4.6 | 6.6 | 7.35 | 2.8 | 3.1 | 4.4 | 4.6 | 6.6 | 7.35 | 4.4 | 4.6 | 6.6 | 7.35 | |
Cont.output(kw/rpm) |
2.5 | 2.8 | 4 | 4.4 | 5.9 | 6.6 | 2.5 | 2.8 | 4 | 4.4 | 5.9 | 6.6 | 4 | 4.4 | 5.9 | 6.6 | |
Starting system |
Recoil | LE:Electric LH:Recoil | Electric | ||||||||||||||
Governor system |
Centrfugal weight system | ||||||||||||||||
Fuel |
Diesel light fuel (BS-AL or equivalent) | ||||||||||||||||
Fuel tank capacity(L) |
2.5 | 3.5 | 5.5 | 7.5 | 13.5 | 15 | 13.5 | 16 | |||||||||
Lube oil capacity(L) |
0.8 | 1.1 | 1.65 | 0.8 | 1.1 | 1.65 | 1.1 | 1.65 | |||||||||
BorexStroke(mm) |
70x55 | 78x62 | 86x70 | 70x55 | 78x62 | 86x70 | 78x62 | 86x70 | |||||||||
Protection system |
Low oil, Warning System/Stop Device (not for L-series) | ||||||||||||||||
| U N I T |
Noise level at 7m db(A) |
79 | 82 | 85 | 79 | 82 | 85 | 70 | |||||||||
Dimensions (LxWxH)(mm) |
575x400 x500 |
640x480 x530 |
720x480 x580 |
575x400 x500 |
640x480 x530 |
720x480 x580 |
840x520 x640 |
905x520 x680 |
|||||||||
Dry weight(kg) |
46 | 61 | 95 | L E:70 LH:65 | L E:85 LH:80 | L E:100 LH:95 | 126 | 165 | |||||||||
